Maidaid / Halcyon Temperature Probe

Description

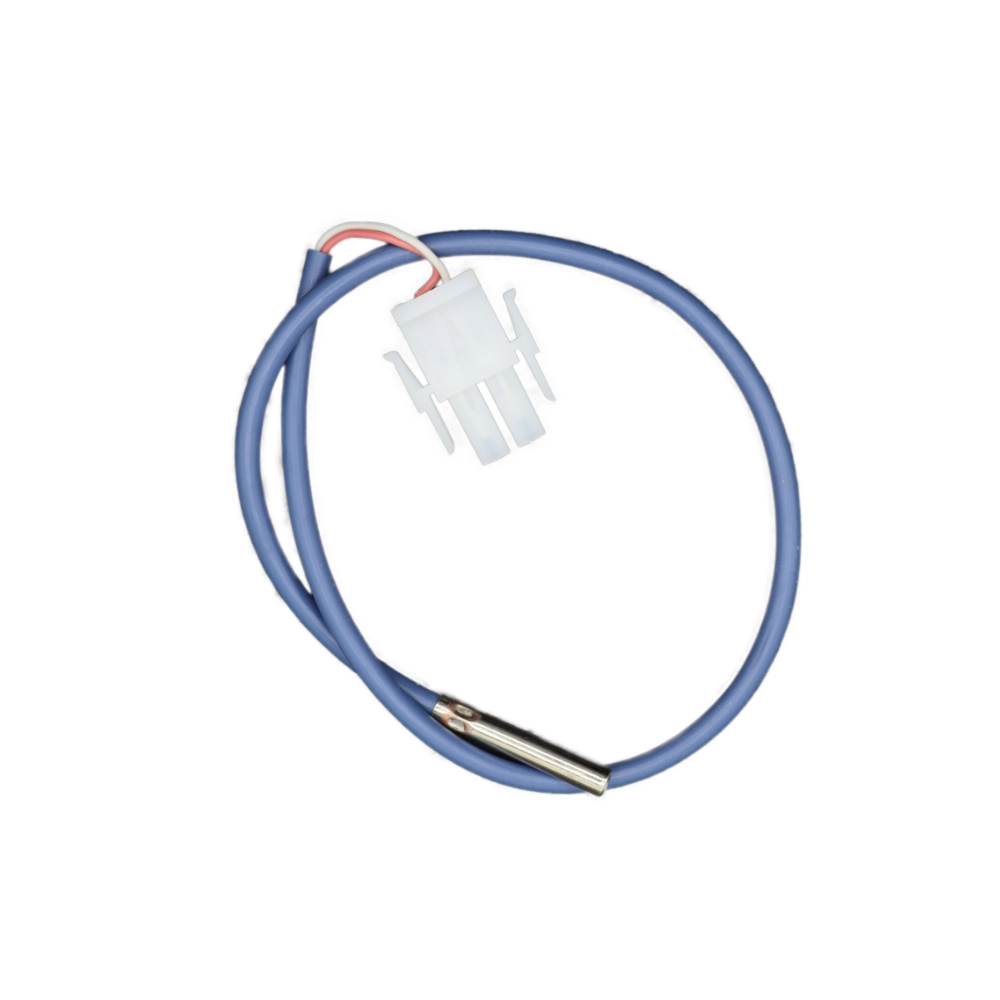

Maidaid Temperature Probe MH103715

This Maidaid temperature probe MH103715 is a genuine manufacturer’s replacement part. Sometimes called a Maidaid temperature sensor, it is designed to read the temperature of the water and then relay this to the main PCB.

The MH103715 temperature probe is an NTC ( Negative temperature coefficient) 10KΩ probe. It can read temperatures up to 110 °C. Temperatures that exceed this can damage the probe, and this is often why it needs replacing.

The MH103715 temperature sensor is compatible with many Maidaid and Halcyon Amika dishwashers and glasswashers, including but not restricted to the following models:

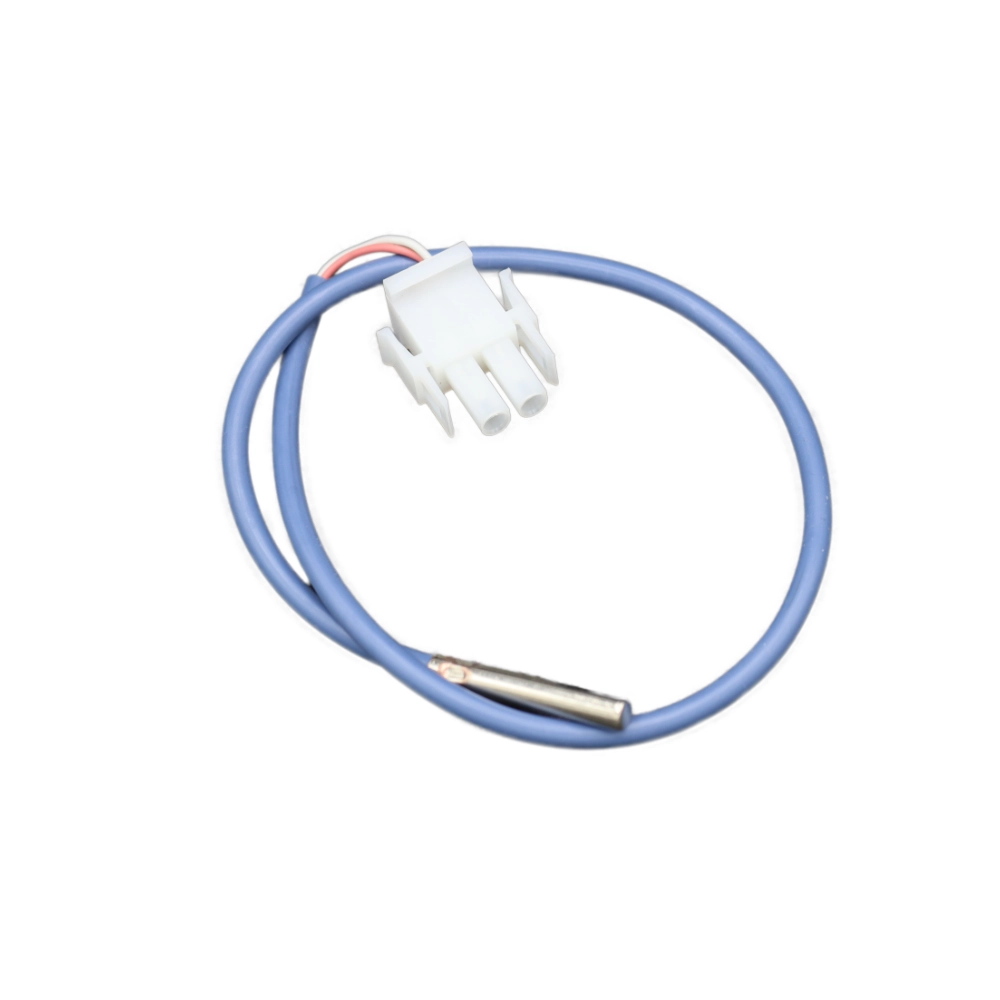

Halcyon Amika Temperature Probe MH103715

• AMH35
• AMH35D
• AMH40
• AMH40D
• AMH45
• AMH45D
• AMH50
• AMH50D
• AMH51
• AMH51D
• AMH55WS
• AMH80
• AMH80D
• AMH91
• AMH91D
• AMH95WS
• Amika 35XL
• Amika 35XLD
• Amika 35XLD
• Amika 45XL
• Amika 45XLD
• Amika 50XL
• Amika 50XLD
• Amika 51XL
• Amika 51XLD
• Amika 55XL
• Amika 55XLD WSD
• Amika 80XL
• Amika 80XLD
• Amika 91XL
• Amika 91XLD
• Amika 95XL WSD
• Amika 95XL
• Amika 9XL

Maidaid Temperature Probe MH103715

• C1000
• C1010
• C1011
• C1011D
• C1025WS
• C1035WS
• C1035WSHR
• C2011
• C2011D
• C2035WS
• C2035WSHR
• C351
• C351D
• C352
• C352D
• C401
• C401D
• C402
• C202D
• C405WS
• C451
• C451D
• C452
• C452D
• C501
• C501D
• C502
• C502D
• C505WS
• C505WSD
• C511
• C512
• C512D
• C515WSD
• C525WS
• C652
• C615WS
• C652
• D1000
• D1010
• D2020
• D2021
• D2121
• D3030
• D3121
• D350
• D400
• D401
• D450
• D500
• D501
• D502
• D510
• D511
• D512
• D515
• D515 N
• D515WS
• D525WS
• EVO 1010
• EVO 2020
• EVO 2021
• EVO 2025WS
• EVO 2035WS
• EVO 2035WSHR
• EVO 2160
• EVO 3135WS
• EVO 400
• EVO 400WS
• EVO 401
• EVO 402
• EVO 405WS
• EVO 425WS
• EVO 500
• EVO 500WS
• EVO 501
• EVO 502
• EVO 505WS
• EVO510
• EVO510WS
• EVO 511
• EVO 512
• EVO 515WS
• EVO 525WS
• EVO 535ws

Maidaid Minirack & Utensil Washer Temperature Probe

• EVO R3010
• EVO R3020
• EVO R3030
• R3000
• R3000BT
• R3002BT
• R3003
• R3003BT
• R3004BT
• R3012
• U132e
• U61e
• U61He
• U70e
• UT132e
• UT61e
• UT61He
• UT70e

Common applications

• Maidaid dishwasher wash tank temperature probe
• Maidaid dishwasher rinse tank temperature probe
• Maidaid glasswasher wash tank temperature probe
• Maidaid glasswasher rinse tank temperature probe
• Halcyon Amika dishwasher wash tank temperature probe
• Halcyon Amika dishwasher rinse tank temperature probe
• Halcyon Amika glasswasher wash tank temperature probe
• Halcyon Amika glasswasher rinse tank temperature probe
